Replicating Hamerly and Elkan (2003) • gmeans

Hamerly and Elkan (2003) evaluate G-means on synthetic data (their Table 1), study the statistical power of the split test (their Figure 3), and cluster two real datasets of handwritten digits. This article reruns these experiments with gmeans(). The paper also compares G-means with X-means and the BIC and reports run times, which are left out here.

The defaults of gmeans() follow the paper: the search starts from one center (k_init = 1), the Anderson-Darling test uses the significance level level = 0.0001, and the number of clusters is not capped (k_max = Inf). The paper provides neither its data nor its code, so the synthetic data below are regenerated from its description, and the results can only be compared approximately.

library(data.table)
library(ggplot2)
library(gmeans)

Synthetic data

Each synthetic dataset in the paper has 5000 points in \(d = 2\), 8, or 32 dimensions, drawn from \(k = 5\), 20, or 80 Gaussian clusters. The cluster means are uniform in the unit hypercube, and \(\sigma\) is chosen so that no two means are closer than \(3\sigma\). Each cluster is made non-spherical by a random scaling and rotation matrix. The paper does not say how the scaling is drawn, so here each dimension is scaled by a factor drawn uniformly between 0.2 and 1, which keeps every cluster at most \(\sigma\) wide in any direction.

simulate_clusters <- function(k, d, n = 5000L) {
  centers <- matrix(runif(k * d), nrow = k)
  sigma <- min(dist(centers)) / 3
  cluster <- rep_len(seq_len(k), n)
  x <- matrix(0, nrow = n, ncol = d)
  for (j in seq_len(k)) {
    rows <- which(cluster == j)
    rotation <- qr.Q(qr(matrix(rnorm(d * d), nrow = d)))
    shape <- diag(runif(d, 0.2, 1), nrow = d) %*% rotation
    noise <- matrix(rnorm(length(rows) * d), ncol = d)
    x[rows, ] <- sweep(sigma * noise %*% shape, 2L, centers[j, ], "+")
  }
  list(x = x, cluster = cluster)
}

The paper reports the number of clusters found and the distortion relative to the distortion of the true clustering, both as mean and standard deviation over 30 datasets per setting. Splitting the data into more clusters than there are lowers the distortion below 1, and so does k-means moving points near the boundary between two clusters to the closer center. A distortion above 1 means the clusters found fit the data worse than the true clusters.

optimal_distortion <- function(x, cluster) {
  sum(vapply(
    split(seq_len(nrow(x)), cluster),
    \(rows) sum(scale(x[rows, , drop = FALSE], scale = FALSE)^2),
    numeric(1L)
  ))
}

set.seed(2003)
settings <- CJ(d = c(2L, 8L, 32L), k = c(5L, 20L, 80L), rep = 1:30)
synthetic <- settings[,
  {
    sim <- simulate_clusters(k, d)
    fit <- gmeans(sim$x)
    .(
      k_found = nrow(fit$centers),
      distortion = fit$tot.withinss / optimal_distortion(sim$x, sim$cluster)
    )
  },
  by = .(d, k, rep)
]

mean_sd <- function(x, digits) {
  sprintf("%.*f ± %.*f", digits, mean(x), digits, sd(x))
}

replicated <- synthetic[,
  .(k_found = mean_sd(k_found, 1L), distortion = mean_sd(distortion, 2L)),
  by = .(d, k)
]

paper <- rowwiseDT(
  d = , k = , paper_k_found = , paper_distortion = ,
   2L ,  5L , "9.1 ± 9.9"     , "0.89 ± 0.23"      ,
   2L , 20L , "20.1 ± 0.6"    , "0.99 ± 0.01"      ,
   2L , 80L , "80.0 ± 0.2"    , "1.00 ± 0.01"      ,
   8L ,  5L , "5.0 ± 0.0"     , "1.00 ± 0.00"      ,
   8L , 20L , "20.0 ± 0.1"    , "0.99 ± 0.00"      ,
   8L , 80L , "80.2 ± 0.5"    , "0.99 ± 0.00"      ,
  32L ,  5L , "5.0 ± 0.0"     , "1.00 ± 0.00"      ,
  32L , 20L , "20.0 ± 0.0"    , "1.00 ± 0.00"      ,
  32L , 80L , "80.0 ± 0.0"    , "1.00 ± 0.00"
)

comparison <- paper[replicated, on = .(d, k)]
knitr::kable(
  comparison,
  col.names = c("d", "true k", "k found (paper)", "distortion (paper)", "k found", "distortion"),
  row.names = FALSE
)

d	true k	k found (paper)	distortion (paper)	k found	distortion
2	5	9.1 ± 9.9	0.89 ± 0.23	11.5 ± 13.1	0.84 ± 0.24
2	20	20.1 ± 0.6	0.99 ± 0.01	21.0 ± 2.7	0.98 ± 0.04
2	80	80.0 ± 0.2	1.00 ± 0.01	80.1 ± 0.4	1.00 ± 0.00
8	5	5.0 ± 0.0	1.00 ± 0.00	5.1 ± 0.3	0.99 ± 0.01
8	20	20.0 ± 0.1	0.99 ± 0.00	20.4 ± 0.9	0.99 ± 0.01
8	80	80.2 ± 0.5	0.99 ± 0.00	80.7 ± 0.9	1.00 ± 0.00
32	5	5.0 ± 0.0	1.00 ± 0.00	5.1 ± 0.3	1.00 ± 0.00
32	20	20.0 ± 0.0	1.00 ± 0.00	20.3 ± 0.5	1.00 ± 0.00
32	80	80.0 ± 0.0	1.00 ± 0.00	81.1 ± 15.2	1.02 ± 0.14

In most settings gmeans() finds about the true number of clusters, as in the paper. With five clusters in two dimensions, both the paper and gmeans() sometimes split the non-spherical clusters into many pieces.

With 80 clusters in 32 dimensions, gmeans() usually finds a few clusters too many (median 83), while the paper finds exactly 80. The mean in the table is closer to 80 only because one dataset stops at 2 clusters (see below), which also inflates the standard deviation. Each cluster here has only about 62 points. With so few points in so many dimensions, the two-center k-means of the split test can find a direction along which even a single Gaussian cluster looks like two, so the test splits Gaussian clusters more often than the level of 0.0001 suggests. With 80 clusters tested in every round, a few such splits add up.

stopped_early <- synthetic[k_found < k / 2]
stopped_early
#> Key: <d, k, rep>
#>        d     k   rep k_found distortion
#>    <int> <int> <int>   <int>      <num>
#> 1:    32    80    10       2      1.781

In 1 of the 270 datasets, gmeans() stops with less than half of the true clusters. This can happen to G-means in general, although the paper reports no such case: when a split does not separate the clusters cleanly, each part still contains many clusters, and projected onto the split direction such a mixture can look Gaussian enough to pass the test at the strict level of 0.0001.

Statistical power

Figure 3 of the paper shows how often the split test makes the wrong decision, as a function of the number of points \(n\). A type I error splits one Gaussian cluster, here with one axis 5% shorter than the other. A type II error does not split two Gaussian clusters whose means are \(5\sigma\) apart. The paper runs 1000 tests each at 10, 20, 50, 100, 150, and 200 points.

set.seed(2003)
error_rates <- data.table(n = c(10L, 20L, 50L, 100L, 150L, 200L))
error_rates <- error_rates[,
  {
    type_1 <- replicate(1000L, {
      x <- matrix(rnorm(2L * n), ncol = 2L) %*% diag(c(1, 0.95))
      nrow(gmeans(x)$centers) > 1L
    })
    type_2 <- replicate(1000L, {
      x <- matrix(rnorm(2L * n), ncol = 2L)
      x[seq_len(n %/% 2L), 1L] <- x[seq_len(n %/% 2L), 1L] + 5
      nrow(gmeans(x)$centers) == 1L
    })
    .(
      error = c("Type I: splits one cluster", "Type II: does not split two clusters"),
      rate = c(mean(type_1), mean(type_2))
    )
  },
  by = n
]

ggplot(error_rates, aes(n, rate)) +
  geom_line() +
  geom_point() +
  facet_wrap(~error) +
  scale_y_continuous(limits = c(0, 1)) +
  labs(x = "Number of points", y = "Error rate")

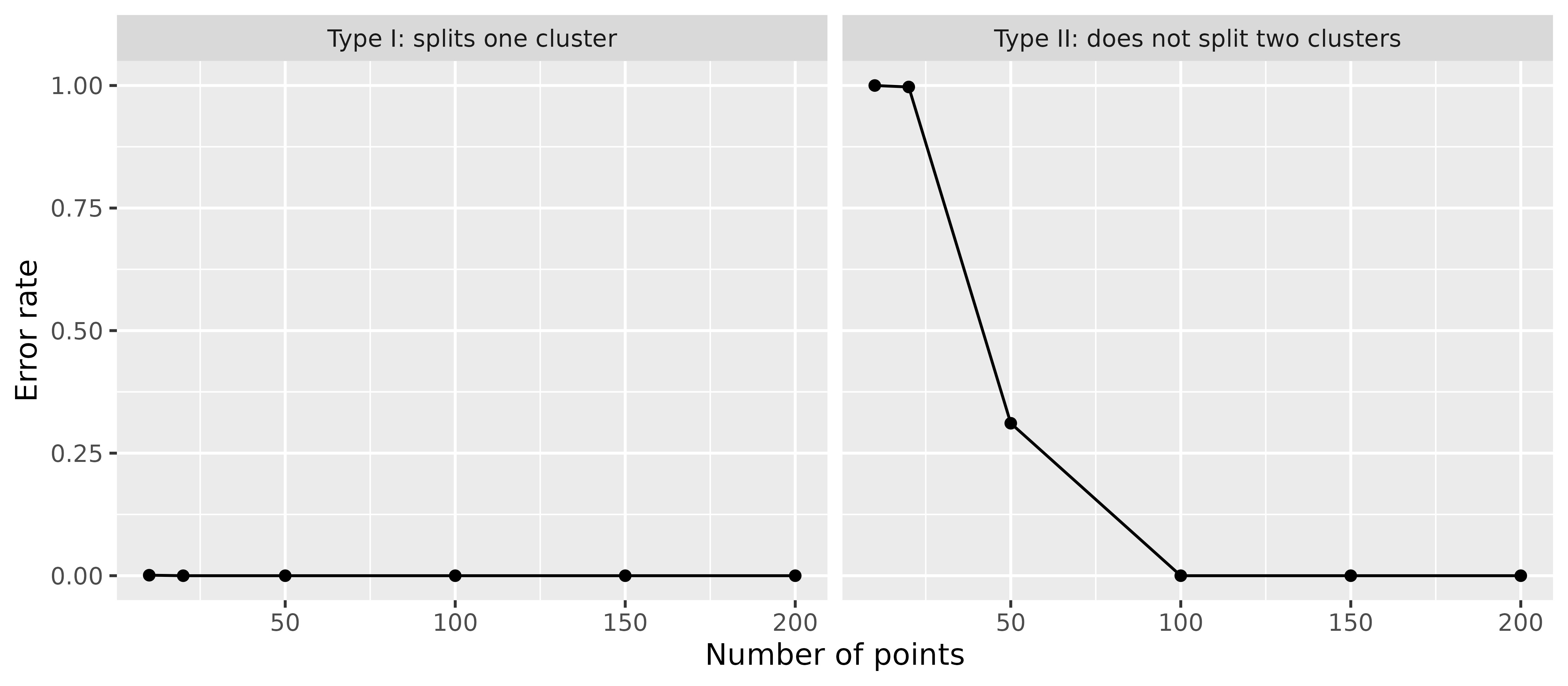

As in the paper, the test almost never splits a single Gaussian cluster, while it needs enough points to split two clusters. In the paper the type II error is close to 1 at 10 and 20 points, about 0.37 at 50 points, and 0 from 100 points on. Here it is 0.997 at 20 points, 0.311 at 50 points, and 0 at 100 points.

Handwritten digits

The paper clusters the Pendigits dataset from the UCI repository, 16 features of pen trajectories of the digits 0 to 9, and reports 69 clusters with a partition quality of 0.196. The partition quality compares the clusters \(j\) with the true classes \(i\): \[ \mathrm{PQ} = \frac{\sum_{i} \sum_{j} p(i, j)^2}{\sum_{i} p(i)^2}, \] where \(p(i, j)\) is the share of points in class \(i\) and cluster \(j\), and \(p(i)\) is the share of points in class \(i\). It is 1 whenever each class lies within a single cluster, and it decreases as the classes are split into more clusters. It does not penalize merging classes: putting all points into one cluster also gives 1.

The paper describes the data as 7984 examples, which matches neither the training set (7494 examples) nor the full dataset (10992 examples) on UCI. The training set is used here, since it is the closest. The file pendigits-train.csv next to this article is a copy of pendigits.tra, the training set by Alpaydin and Alimoglu (1996), doi:10.24432/C5MG6K, licensed under CC BY 4.0.

pendigits <- fread(
  "pendigits-train.csv",
  header = FALSE,
  col.names = c(paste0("x", 1:16), "digit")
)
x <- as.matrix(pendigits[, !"digit"])
digit <- pendigits$digit

partition_quality <- function(truth, cluster) {
  p <- table(truth, cluster) / length(truth)
  sum(p^2) / sum(rowSums(p)^2)
}

fit <- gmeans(x)
nrow(fit$centers)
#> [1] 86
partition_quality(digit, fit$cluster)
#> [1] 0.1819

gmeans() finds 86 clusters with a partition quality of 0.182, compared to 69 clusters and 0.196 in the paper.

The paper also clusters 6000 randomly chosen MNIST digits after a random projection to 50 dimensions, which is not repeated here.

Remaining differences

Apart from the data, gmeans() differs from the paper in these details:

The test statistic is corrected for the sample size with the factor \(1 + 0.75/n + 2.25/n^2\) from D’Agostino and Stephens (1986), while the paper uses \(1 + 4/n - 25/n^2\) from Stephens (1974). The corrected statistic is also compared to a slightly lower cutoff, 1.851 instead of the paper’s 1.8692, since the p-value comes from the approximation of D’Agostino and Stephens (1986). The paper’s factor is larger for small samples, which outweighs the lower cutoff, so its test splits small clusters more readily: to split a cluster, the uncorrected statistic has to exceed about 1.64 with 20 points and 1.75 with 50 points in the paper, but 1.77 and 1.82 here. Rerunning the power study with the paper’s correction and cutoff lowers the type II error at 50 points by about 0.05, which moves it further from the paper’s figure, while the synthetic results barely change.
Clusters with fewer than 8 points are not tested and therefore never split, since the p-value of the test requires at least 8 values.
k-means uses the Hartigan-Wong algorithm, the default of stats::kmeans(). The paper does not say which algorithm it uses. With algorithm = "Lloyd", gmeans() splits fewer Gaussian clusters in high dimensions: for 80 clusters in 32 dimensions, the median number of clusters found over 30 datasets drops from 83 to 81. Neither this nor the correction of the test statistic explains why the paper finds exactly 80 clusters.
